 Home / Project / Chemical engineering industryHebei, a chemical company (pesticides drying equipment) selection XZG-8 rotary flash dryer

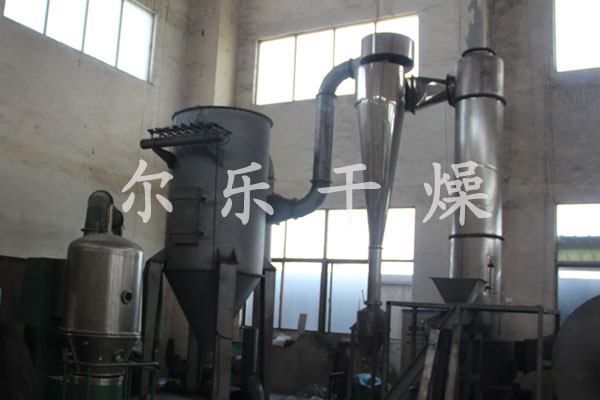

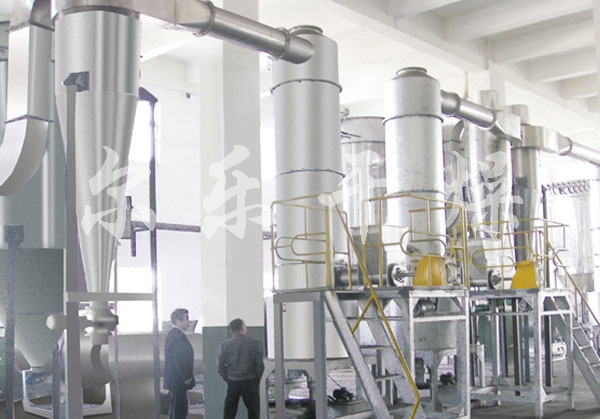

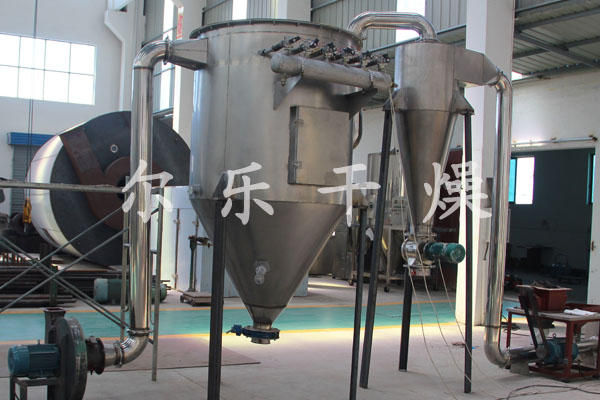

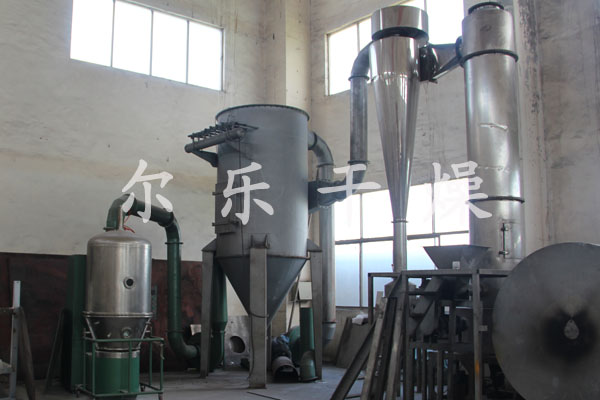

Hebei, a chemical company (pesticides drying equipment) selection XZG-8 rotary flash dryer

Application client:Hebei, a chemical company (pesticides drying equipment) selection XZG-8 rotary flash dryer
Product selection:XZG series rotary flash
Profile:XZG series rotary flash dryer is my factory in the introduction, absorption of foreign advanced technology, successfully developed a new type of drying equipment.
More

Detailed description

Overview: XZG series rotary flash dryer is my factory in the introduction, absorption of foreign advanced technology, successfully developed a new type of drying equipment. The machine advanced technology, reasonable design, compact structure, wide application, production capacity, product quality, high efficiency, energy saving, in a device drying, crushing, screening once completed, to eliminate environmental pollution, machine performance to the international advanced level of technology.

Principle: Hot air inlet with suitable atomizing speed enter from the bottom of drier stirring and crushing and drying chamber, the material exerts strong shearing, blowing, floating and rotating effect material by centrifuge, shearing, impacting and friction dividend micronized strengthen the heat and mass transfer. At the bottom of drier, wetter particles larger group under the action of the agitator is mechanically crushed, low moisture content, particle size smaller particles are rotating airflow entrained rise further dried during ascent. Since the gas-solid flow in rotating and the inertia of the solid phase is greater than the gas phase, the larger the relative velocity between solid and gas phases, and strengthen the heat and mass transfer between two phases, so it strengthens the process. Features: ● charging device for a variety of selection, continuous and stable feeding, intermediate process does not produce bridging phenomenon. ● bottom of the dryer to set a special cooling device, to avoid the deterioration of the material generated at the bottom of the phenomenon of high-temperature region. ● special pressure seal and bearing cooling device, effectively extending the life of the transmission part. ● special air distribution system, reducing the resistance of the device, and provides effective treatment capacity dryer. ● drying chamber equipped with grading ring and swirl sheet material fineness and final moisture adjustable. (Such as calcium carbonate final moisture may regulator% to ≤0.1) ● relative to other drying methods, can effectively increase the proportion of materials. ● gas inside the drying chamber to the high-speed, short residence time, effectively prevent the wall material viscosity and heat-sensitive materials deterioration phenomenon, to achieve efficient, fast, small equipment, large-scale production. Adaptation Materials: ● inorganic: boric acid, calcium carbonate, calcium hydroxide, copper sulfate, iron oxide, barium carbonate, antimony trioxide, metal hydroxides, various heavy metal salts, synthetic cryolite and so on. ● Organic compounds: atrazine (pesticides), cadmium laurate, benzoic acid, germicide, sodium oxalate, cellulose acetate and the like. ● ceramic: kaolin, silica, clay. ● dye classes: anthraquinone, black iron oxide, indigo pigments, butyric acid, zinc sulfide, various azo intermediate. ● Food: soy protein, gelatinized starch, distillers grains, wheat, sugar, wheat starch.

Technical Parameters:

model Host Nei Jing (mm) Air volume (m3 / h) Water evaporation (kg / h) Maximum Capacity (KW) Maximum height (m) Occupancy plane (m2)
XZG 4 400 1150-2300 58-73 21.4 4.6 27
XZG 6 600 2500-5100 130-163 34.2 5.5 39
XZG 8 800 4500-9000 238-297 63.5 6.0 40
XZG 10 1000 7000-13500 345-430 68 6.5 55
XZG 12 1200 10000-20000 515-645 94 6.8 62
XZG 14 1400 16600-28000 730-910 130 7.0 89
XZG 16 1600 18000-38100 962-1203 160 7.2 160

Notes: 1. The amount of water is evaporated into the air temperature was 200 ℃, 80 ℃ wind meter 2, the installed capacity of the basic data can be changed according to the material properties. 3, covers an arrangement according to the actual situation, the data in the table are for reference only.
