 Home / Project / Biopharmaceutical industryChongqing, a Pharmaceutical Company (Material: API drying) FZG-15 type, 20 type square vacuum dryer

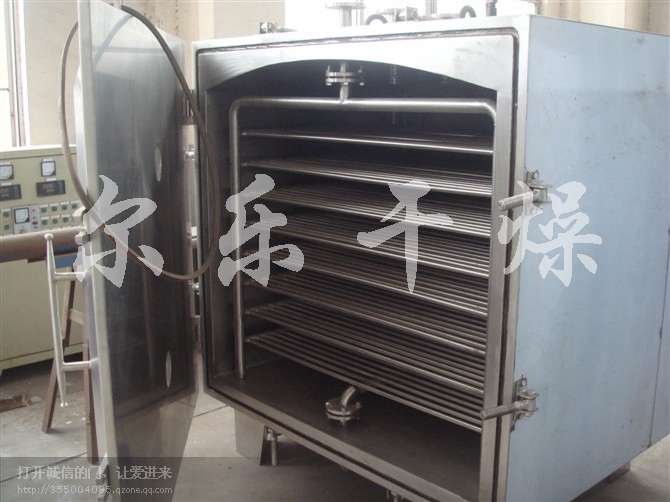

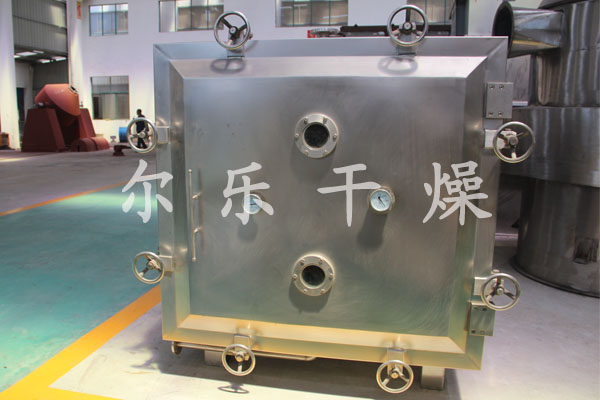

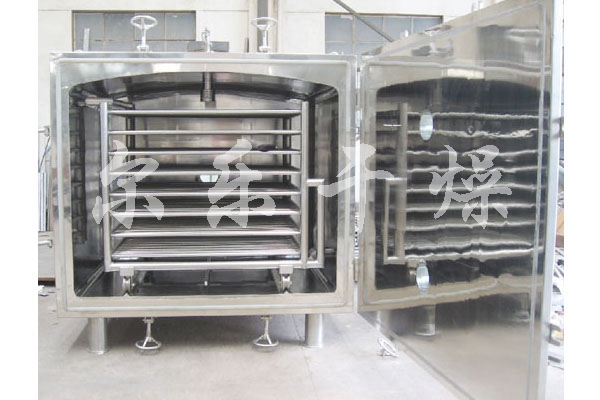

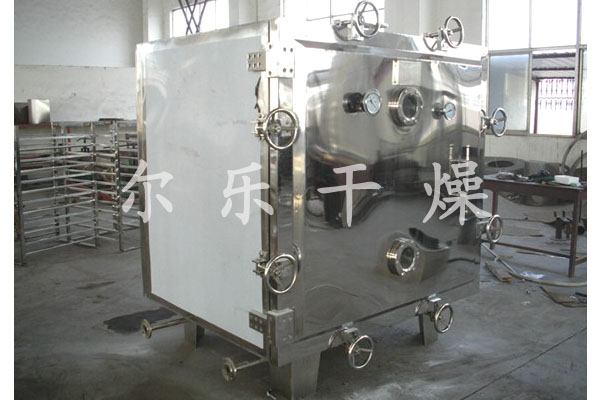

Chongqing, a Pharmaceutical Company (Material: API drying) FZG-15 type, 20 type square vacuum dryer

Application client:Chongqing, a Pharmaceutical Company (Material: API drying) FZG-15 type, 20 type square vacuum dryer
Product selection:FZG-15 type, 20 type square vacuum drier
Profile:boiling point of the material under vacuum solution is reduced, so that the evaporator heat transfer driving force increases, and therefore a certain amount of heat transfer can save evaporator heat transfer area.
More

Detailed description

Features: ● boiling point of the material under vacuum solution is reduced, so that the evaporator heat transfer driving force increases, and therefore a certain amount of heat transfer can save evaporator heat transfer area. ● source for operation of evaporation may be low pressure steam or surplus heat steam. ● less heat loss of evaporator. ● can be disinfected before drying process, the drying process without any impurities mixed in line with GMP requirements. ● a static vacuum dryer, so the body dry material will not be damaged. Principle: The so-called vacuum drying, the material is dried in a vacuum, heating and drying, if the use of a vacuum pump air and humidity, is to speed up the drying rate. Technical Parameters:

specification
YZG-600
YZG 800
YZG 1000
YZG 1400
FZG-10
FZG-15
FZG-20
Oven internal dimensions (mm)
φ600 × 976
φ800 × 1247
φ1000 × 1527
φ1400 × 2054
× 1060 × 1500 1220
1400 × 1500 × 1220
1800 × 1500 × 1220
Oven External dimensions (mm)
× 810 × 1135 1020
× 1045 × 1700 1335
× 1190 × 1693 1500
× 1675 × 2380 1920
1720 × 1924 × 1513
1924 × 1513 × 2060
2500 × 1924 × 1513
Drying rack layer
4
4
6
8
5
8
12
Interlayer distance (mm)
81
82
102
102
122
122
122
Baking tray size (mm)
310 × 600 × 45
520 × 410 × 45
520 × 410 × 45
460 × 640 × 45
640 × 460 × 45
640 × 460 × 45
640 × 460 × 45
Number of baking tray
4
8
12
32
20
32
48
Drying rack tube so that pressure (MPa)
≤0.784
≤0.784
≤0.784
≤0.784
≤0.784
≤0.784
≤0.784
Drying rack temperature (℃)
35-150
35-150
35-150
35-150
35-150
35-150
35-150
The degree of vacuum inside the load (MPa)
-0.1
-0.1
-0.1
-0.1
-0.1
-0.1
0.1
In the of-0.1MPa, temperature 110 ℃ heating , the water vaporization rate (kg / m2 · hr)
7.2
7.2
7.2
7.2
7.2
7.2
7.2
With a condenser, the vacuum pump models, power (kw)
2X-15A 2KW
2x-30A 3KW
2x-30A 3KW
2x-70A 5.5KW
2x-70A 5.5KW
2x-70A 5.5KW
2x-90A 2kW
When not in condenser vacuum pump model, power (kw)
SZ-0.5 1.5KW
SZ-1 2.2kW
SZ-1 2.2kW
SZ-1 2.2kW
W-2 4KW
W-2 4KW
W-2 5.5KW
Oven Weight (kg)
250
600
800
1400
1400
2100
3200

The above data. Old reference only. If you have special requirements, the factory to provide design and consulting services.

Note: If using a condenser, a solvent in raw material can be recovered through the condenser; such as the use SK series water ring vacuum pump, condenser can not save energy investment.
