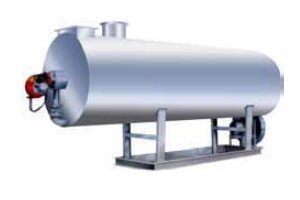

REY Series Fuel Oil, Gas Hot Air Furnace
It is wide used for heating, damp removing of pharmaceutical industry, foodstuff, textile, printing and dyeing, food, grain processing, atuomobile and so on.
Detailed description
Features：
It is wide used for heating, damp removing of pharmaceutical industry, foodstuff, textile, printing and dyeing, food, grain processing, atuomobile and so on.
Description：
The fuel is burnt at firebox and the high temperature is produced. The quantity of heat will conduct to air to be heated through heat exchange device. Through heat exchange, the temperature of air is dropped to less than 250℃ and the air will be discharged. The air to be heated is sent to hot air furnace through distribution blow fan. After absorbed heat to the rated value, the air will be sent from the vent of hot air. When the temperature of hot air reaches the rated upper limit, the burner can stop or turn to small fire automatically. When the temperature of hot air drops to the rated low limit, the burner can burn or turn to big fire automatically.
Technical parameters：
|
Model / Parameters |
Heat output (KJ / h) |
The output air flow volume (m 3 / H) |
Output Temperature (℃) |
Fuel consumption (kg / h) |
Burner model |
|
RLY-2.5 |
1.045 × 10 5 |
1500-560 |
60-200 |
4-5 |
M4 |
|
RLY-4 |
1.672 × 10 5 |
3500-930 |
60-200 |
6-7 |
M8 |
|
RLY-8 |
3.344 × 10 5 |
5600-1480 |
60-200 |
11.5-13.5 |
M12 |
|
RLY-15 |
6.270 × 10 5 |
12000-2160 |
60-250 |
21.5-25 |
M20 |
|
RLY-30 |
12.54 × 10 5 |
25000-4330 |
60-250 |
43-50 |
MP35AB |
|
RLY-40 |
16.72 × 10 5 |
28000-5600 |
60-250 |
57-67 |
MP45AB |
|
RLY-60 |
25.08 × 10 5 |
45000-8660 |
60-250 |
86-100 |
MP80AB |
|
RLYL-80 |
33.44 × 10 5 |
83000-12500 |
60-350 |
114-135 |
MP130AB |
|
RLY-160 |
66.88 × 10 5 |
134400-23000 |
60-350 |
228-270 |
MP200AB |
|
RLY-200 |
83.60 × 10 5 |
170000-28000 |
60-350 |
286-334 |
MP300AB |
Note: 1.the output temperature refers to the input temperature at 20 ℃ when the temperature rise.
2 .the value of oil by burning 4800KJ / kg calculations.
